Shengmilo MX04 Bafang 500W Retro Electric Bicycle 26 x 3″ Tyre

Original price was: £2,199.00.Current price is: £1,490.00.

Available on back-order

Shengmilo MX04 Retro Electrical Bike 500W

Shengmilo MX04 Bafang 500W Retro Electric Bicycle 26 x 3″ Tyre – 15Ah Lithium Battery – Shimano 7 Speed | Free 2-5 Day Fast Shipping *

For riders who have high standards, the Shengmilo MX04 electric mountain bike is a top-performing choice. This e-bike has a 500W motor that can reach up to 45 km/h, and it can go up to 80 km on a single charge thanks to its 48V 15Ah Lithium-ion battery. With its sophisticated suspension, 21-speed Shimano gearbox, and large tyres, the Shengmilo MX04 is a flexible choice for both everyday commuting and off-road riding. With this excellent electric mountain bike, you can ride on any terrain with greater stability and performance.

500 Watt BAFANG Motor

The BAFANG rear-mounted engine of the Shengmilo MX04 is fitted. With a 500W motor (1000W peak power), 80 Nm of torque, and a top speed of 40 km/h, you can handle steep climbs up to 35 degrees with ease.
Select the Shengmilo MX04 E-bike for consistently strong performance during your rides.

Built-in Detachable 48V 15Ah Lithium Battery

With 18650 high-performance LG battery cells, this 720Wh battery of the MX04 is neatly incorporated into the frame to further shield it from dust and theft. The battery can have a range of 50–60 kilometres, depending on many affecting variables.
With only one charge, enjoy the utmost convenience of up to 30–40 km in throttle mode and more than 50–60 km in pedal assist mode. This long-lasting battery has a capacity of at least 90% after 8 months and 80% after 18 months, and it can withstand more than 1000 charging cycles. The multi-protective smart BMS only need 5-7 hours to completely charge.

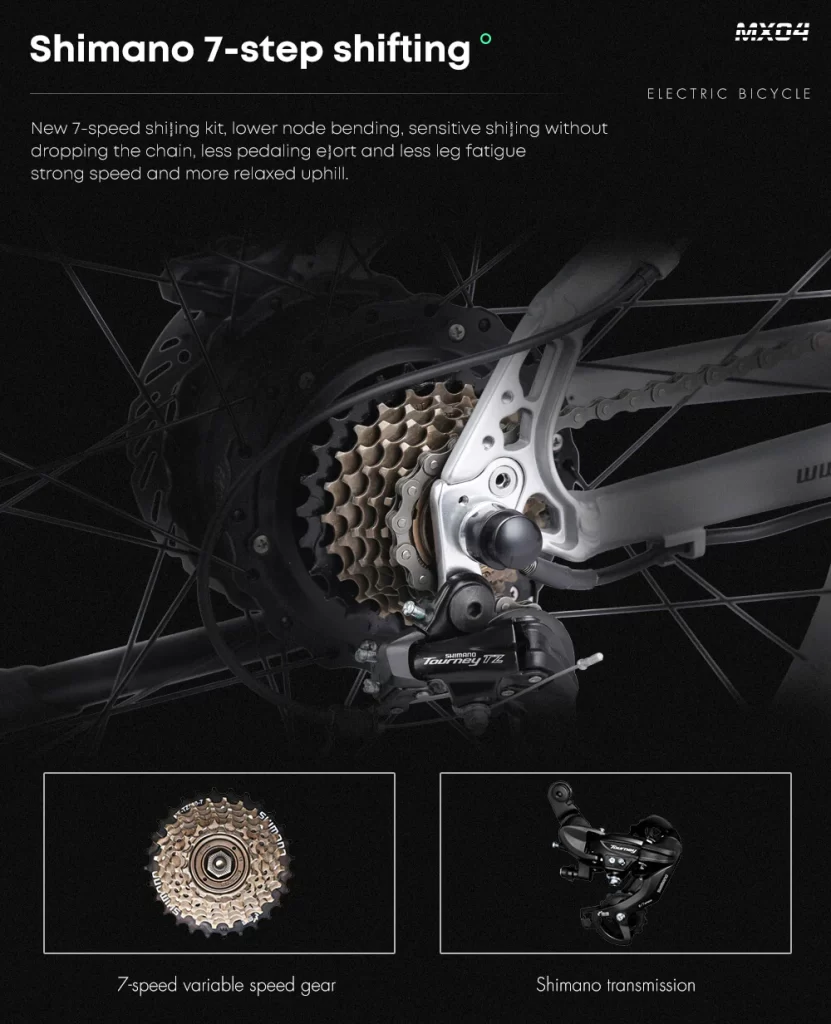

7-Speed Shimano Gear Shift

The Shengmilo MX04 features a revolutionary 21-speed shifting kit, which reduces node bending and allows for delicate shifting without dropping the chain. It also offers powerful speed and a more calm uphill ride with less pedalling effort.

Improved 6061 Aluminium Frame

The frame of the Shengmilo MX04 is made of lightweight, high-strength 6061 aluminium, which gives the bike unparalleled durability. The battery is simply detachable, making it handy to charge your mobile device whether you’re at home, in a hotel, or at school.

26×3″ Fat Tires for Unmatched Traction and Fun Rides

The 26×3.0-inch mountain fat tyres on the Shengmilo MX04 provide exceptional traction and grip on even the roughest terrain. These tyres provide an unmatched riding experience whether you’re speeding down icy mountain roads or riding by the shore. They not only deliver a fantastic show, but they also make an impact.

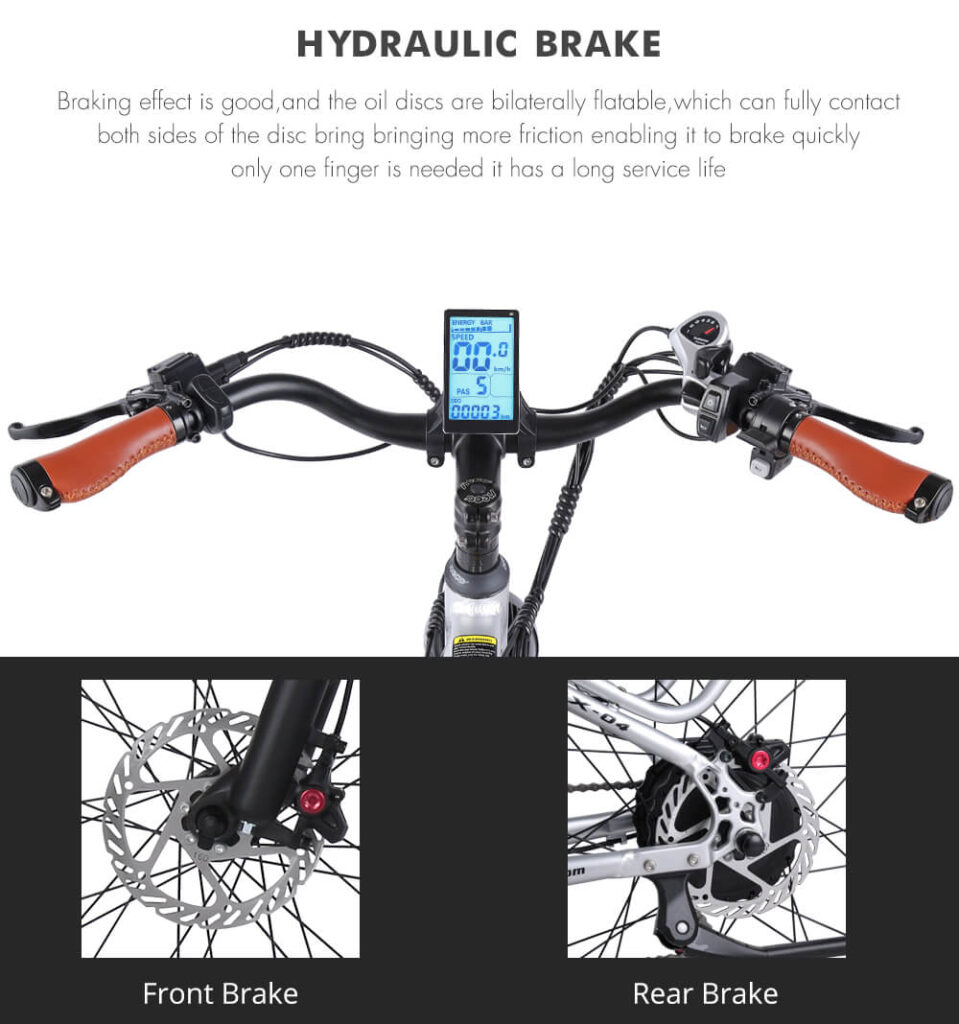

High-Performance Dual Hydraulic Disc Brakes

Our twin hydraulic disc brakes provide quick, steady, and dependable stopping power, making them ideal for cyclists seeking the highest level of control and accuracy. You may ride with confidence and enjoyment knowing that there are brakes on both the front and rear wheels. In addition, our braking system switches off engine power when the brake lever is engaged, averting potential accidents and prolonging the life of the brake pads to provide you with dependable and long-lasting performance.

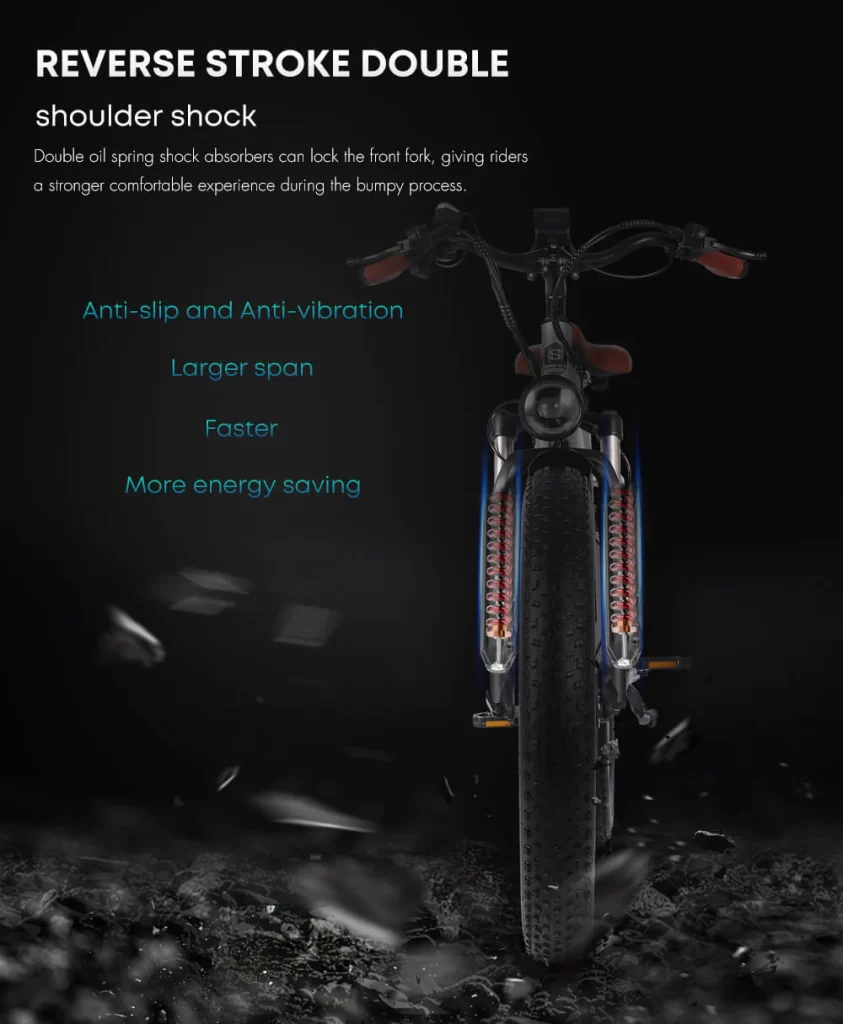

Lockable Front Fork Shock Absorber

The Shengmilo MX04 electric bike is the ideal partner for the lockable front fork shock absorber, which is a demonstration of our commitment to quality. Superior comfort and dependability are provided by this suspension system, which is constructed with robust shock absorbers and lightweight components. Furthermore, because of its rebound and locking features, it can tackle any terrain, from everyday commuting to off-road excursions. You can effortlessly modify the suspension to fit your riding style, giving you the utmost control and accuracy.

Ergonomic and Stylish Retro Saddle

Our saddle offers the best comfort and stress alleviation during extended rides thanks to its ergonomic design and historical appearance. Our soft bicycle seat, which is made of premium materials, guarantees a comfortable and smooth ride every time. Bicycle stiffness and soreness are over, and you may look forward to a joyful and healthy ride. With our top-notch saddle, you may ride in style and comfort while meeting your demands.

Use a Dominant Motorcycle Headlight to Light Your Way

The large motorcycle headlight on the Shengmilo MX04 lets you ride safely and stylishly! This bright headlight improves visibility and gives your bike a stylish look. Featuring an incorporated horn for increased convenience, this feature-rich bike is ideal for trips at night.

Strong Iron Fenders

With the metal fenders on the Shengmilo MX04 electric bike, you can ride in all weather conditions with confidence. Our metal fenders offer optimal protection for both the front and back wheels, unlike cheap plastic versions that break easily. A designed mud block module and extra fenders are fitted to the back tyre to provide double mud protection, successfully preventing rain and mud from spilling onto the rider’s body. Remain dry and clean on your bike, regardless of the weather.

Smart LCD Meter

The King-Meter smart panel on the Shengmilo MX04 lets you ride like a pro and gives you the most control and accuracy possible for your e-bike. The NOKEE-U series instruments from King-Meter are included on the smart screen, which shows important data including speed, battery level, mileage, and a 1–5 speed level display. To further customise your ride, three buttons let you switch between the power assist and electric modes.

Bold and Robust Rear Rack

Our bolded rear rack is particularly crafted to complement the Shengmilo MX04 frame and is constructed from premium, thicker metal. It is the ideal complement to your bike, making it simple to move people or things and even deliver meals. We guarantee stability and safety while driving since our rear rack is designed to support even the biggest loads. You can travel with confidence knowing that your goods are safe and secure thanks to our robust and adaptable rear rack.

Convenient Thumb Throttle

The ultimate safety feature of the Shengmilo MX04 is the thumb throttle, which is intended to shield you from any harm and prevent inadvertent activation. You will have complete control over your bike’s power and speed thanks to its ergonomic design and simple thumb control, guaranteeing a fun and safe riding experience. Therefore, our thumb throttle offers the accuracy and security you need to ride with confidence, whether you’re commuting to work or going on an exhilarating off-road adventure.

YouTube player

Shengmilo MX04 Retro Electrical Bike
Shengmilo MX04 Retro Electrical Bike
Shengmilo MX04 Retro Electrical Bike
Shengmilo MX04 Retro Electrical Bike
Shengmilo MX04 Retro Electrical Bike
Shengmilo MX04 Retro Electrical Bike
Shengmilo MX04 Retro Electrical Bike
Shengmilo MX04 Retro Electrical Bike
Shengmilo MX04 Retro Electrical Bike
Shengmilo MX04 Retro Electrical Bike
Shengmilo MX04 Retro Electrical Bike

Product Specifications

General Brand Shengmilo
Tyres 26*3.0 inch  Road Tyres
Model MX04
Colour Silver
Version CE Version
Throttle  Thumb throttle


Battery Material 48V 15Ah Li-ion Battery LG Cell 21700 Li-ion Battery
Type of batteries Removable portable charging. Net weight 4.5 kg
Rated Voltage 48V
Charging time 6-8 hours
Rated Capacity 48V 15Ah
Charging Temperature 0~40°C
Controller Sine wave controller
Motor Type BAFANG Hall Brushless Gear DC Rear Motor
Rated Voltage 48V
Rated Power 500W
Torque 80Nm
Max Climb 35°


Dimensions L×W×H Product size: 190 x 76 x 110 cm – 74 x 29 x 39 in
Package size: 150 x 26 x 80 cm – 59 x 10.2 x 31.4 in
Operating Temperature -10~40°C
Display King-meter NOKEE-U waterproof LCD meter
Net Weight 29 kg – 63.9 lbs
Package Weight 35 kg – 77.1 lbs
IP Rating IP45
Max. Speed 25 km/h  – 15.5 mph (unlockable to 40 km/h -24.8 mph)
Transmission Shimano TX55/7  7-Speed
Mileage Electric mode 30 – 35 km / 18.6-21.7 miles
Assist mode 50 – 60 km / 31 – 37.2 miles
Shock-absorption Front suspension fork with lockout
Brakes TEKTRO E500 Hydraulic disc brakes
Front and rear
Frame material Aluminium alloy
Suitable Height 165 – 200 cm / 5’4″ – 6’5″
Max Load 150 kg – 330 lbs


In the box
Electric Bike Shengmilo MX04
Battery Charger
Assembly Tools
Removable Battery



Please be aware that this ebike model is only legal for use on private roads with the owner’s consent.
